Fabric Rolling Machine

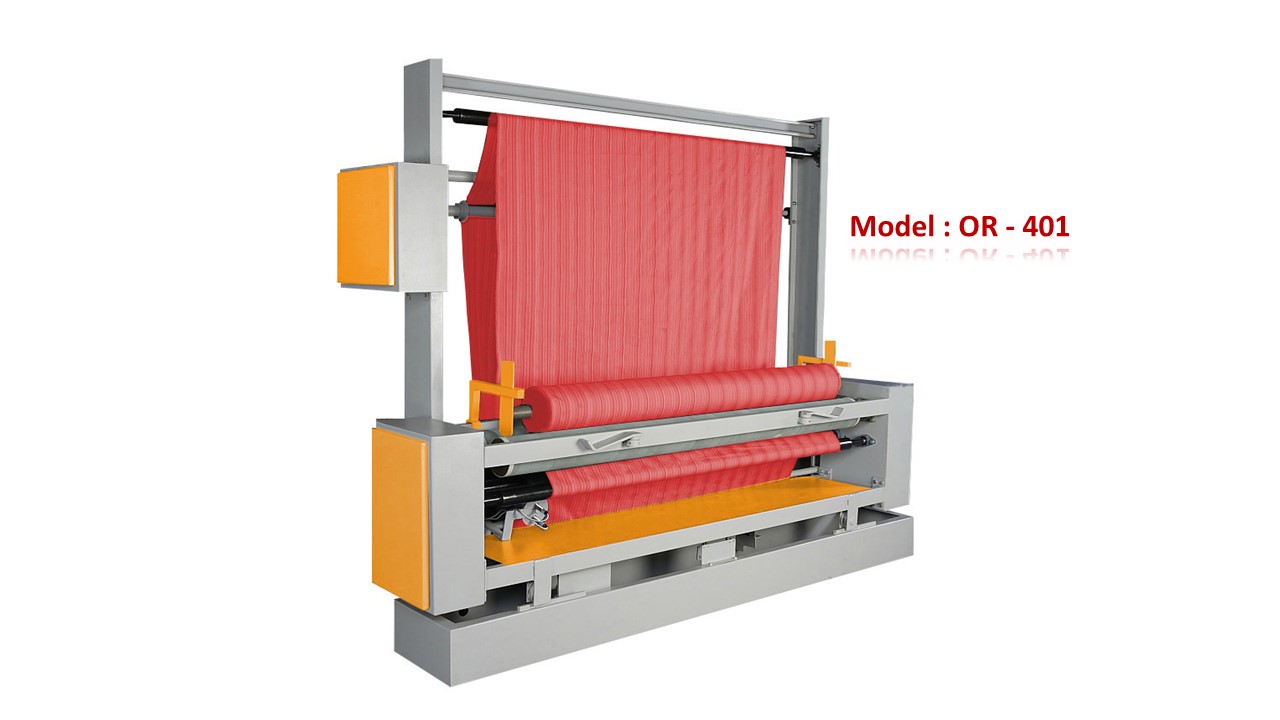

Ordito Rolling Machine (OR - 401)
OR -401 perfected the design & manufacturing of wide range of Fabric Rolling Machines available in various working widths which are easy to operate, technically advanced and programmable machines in the field of fabric quality control. Fabric length measuring device is provided to measure the length of fabric Rolled. In ORM all types of fabric rolling in front of the operator.
- Tech Specification
- Fabric input from Fold, Roll form to Roll form
- Variable fabric input & Output option
- Variable speed & speed control at operator hand
- Motorize Guider Systems

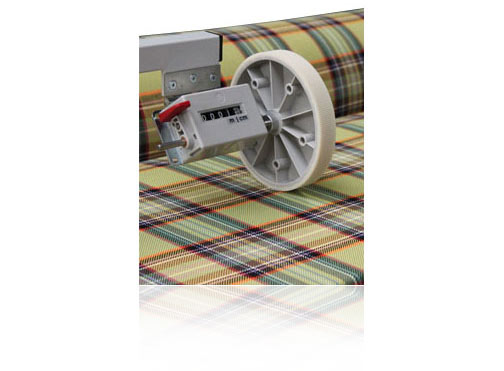

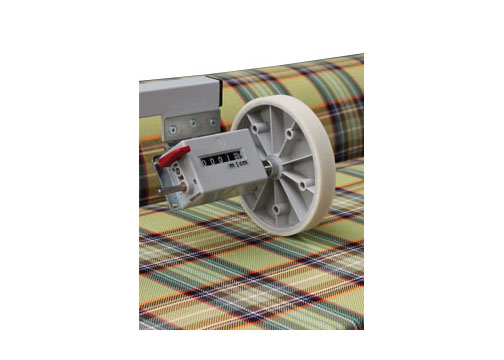

- Fabric length measuring devices
- Synchronize fabric by tension unit
- Low power consumption
- Remove crease & wrinkle
- Emergency facility to stop machine
- Comfortable working for operator
- Fabric can run in Forward as well as Reverse direction
- Automatic stop arrangement to stop the machine at the end of fabric
- Bow Roller has been provided to open out crease in the fabric.
Optional
- Auto Stop in Input
- S.S. Guide Roll
- Door Sensor
- Auto Weighing Systems
- Auto Cutting Systems
- Conveyor Systems
- Foot Switch
- Electronic Counter Meter
- Imported Roll Covering
