Fabric Inspection Machine

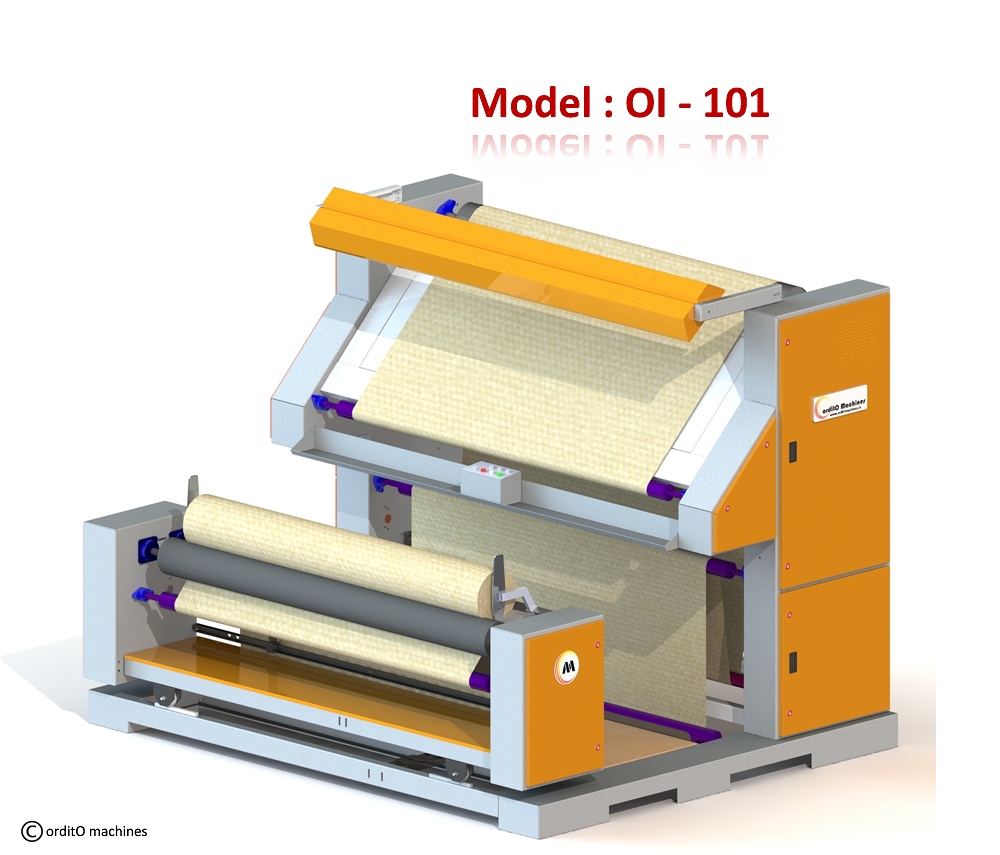

Ordito Inspection Machine – Auto Cutter (OI - 101)

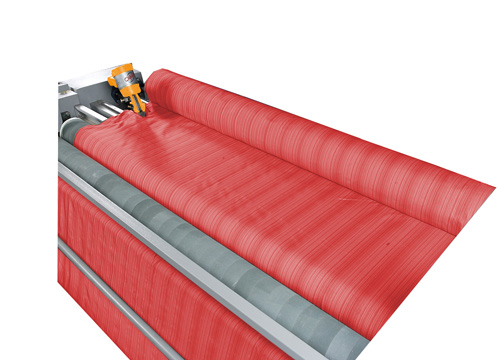

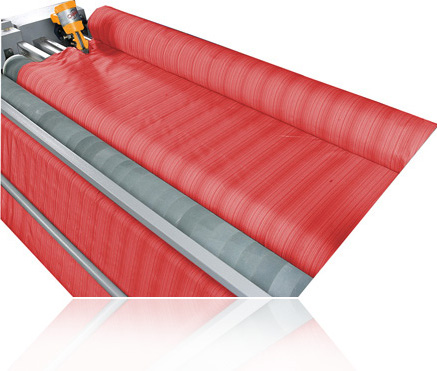

OI - 101 designed to detect fabric defect for types of fabric in roll form on laminated inspection table. A Digital length counter is provided to measure the length of fabric inspected. OIM Inspection machine with optional data collection and analysis systems. In this Machine fabric rolling behind the operator with various other fabric inlet and outlet options. cuts the fabric in a straight line with additional auto cutting systems.

Tech. Specification

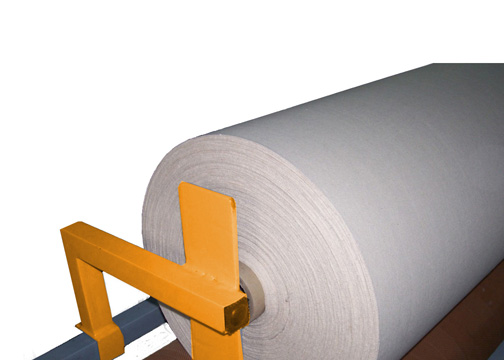

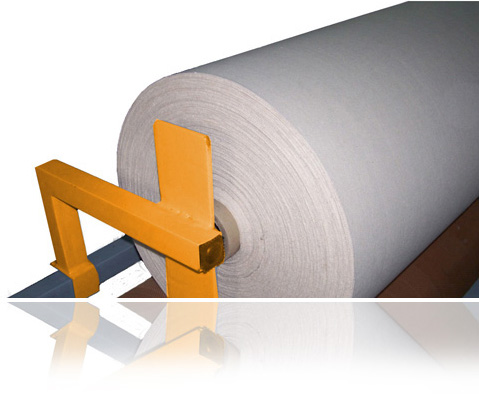

  • Fabric input from Fold, Roll form to Roll form
  • Variable fabric input & Output option
  • Variable speed & speed control at operator hand
  • Motorize Guider Systems
  • Fabric length measuring devices
  • Synchronize fabric by tension unit
  • Compensator
  • Low power consumption
  • Remove crease & wrinkle
  • Emergency facility to stop machine
  • Fabric Inspection panel at 60o inclined or adjustable
  • Illuminated intermediate and top panel
  • Comfortable working for operator
  • Wooden Platform for operator
  • Fabric can run in Forward as well as Reverse direction
  • Automatic stop arrangement to stop the machine at the end of fabric
  • Bow Roller has been provided in the batching device to open out crease in the fabric.



Optional
