Fabric Inspection Machine

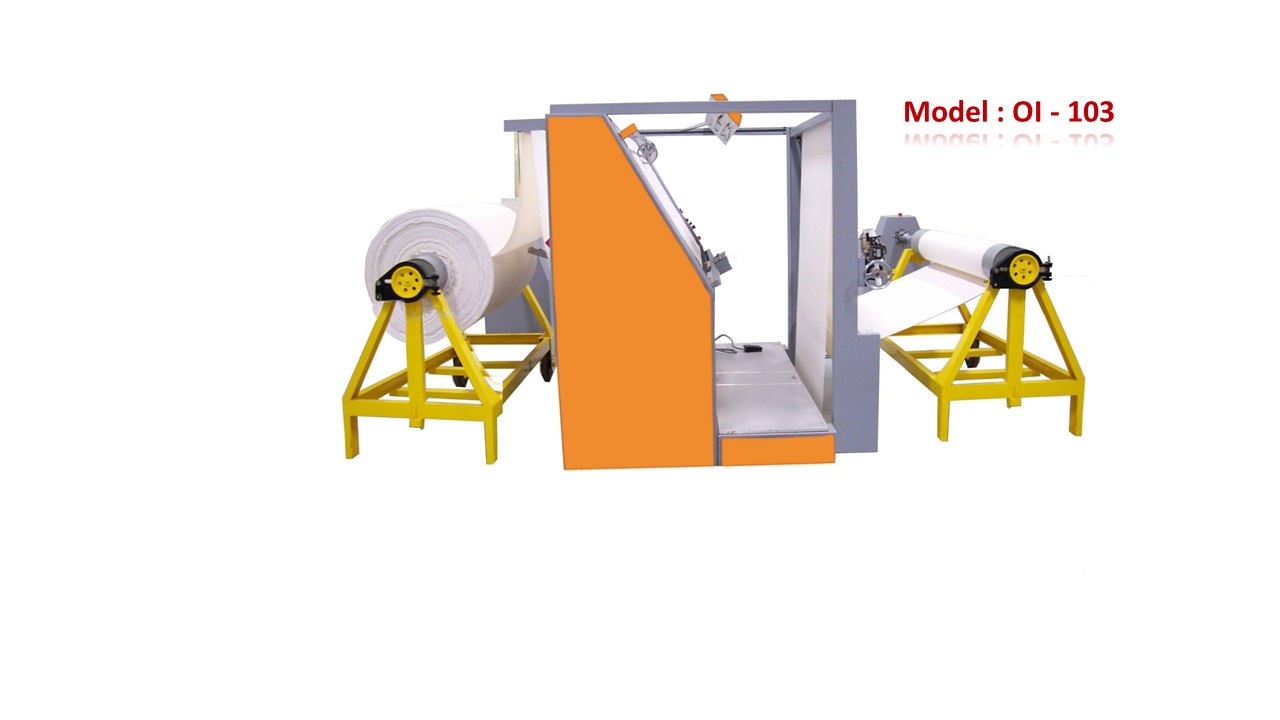

Ordito Inspection Machine Axial To Axial (OI -103)

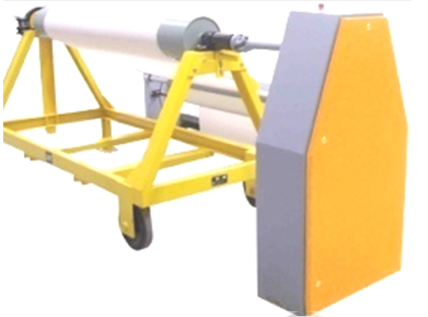

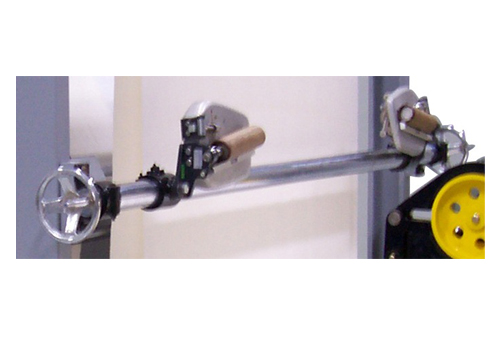

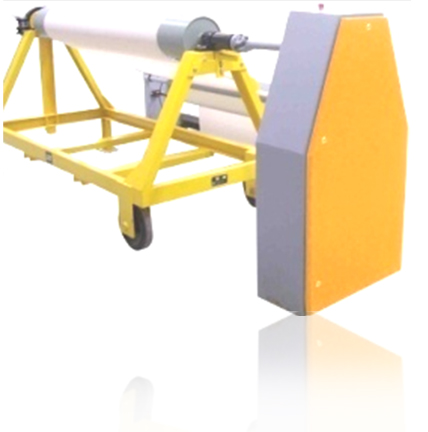

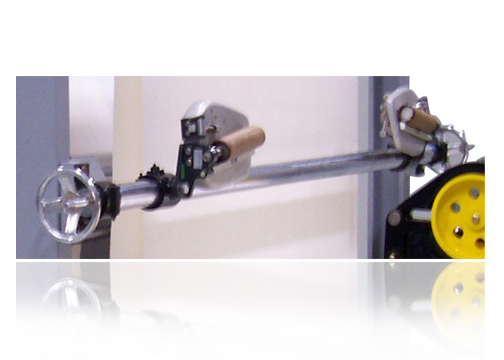

OI - 103 designed inspection machine to detect fabric defects for all types of fabric in Axial Form. Axial Unwinder is Controlled through an additional compensator with synchronies between axial to axial. E + L Edge Guider maintains the centerline and guides the fabric in line.

  • Tech Specification

  • Fabric input from Batch, Roll form to Roll form
  • Variable speed & speed control at operator hand
  • E + L Edge Guiding System
  • Fabric length measuring devices
  • Synchronize fabric by tension unit
  • Compensator
  • Fabric can run in Forward as well as Reverse direction
  • Low power consumption
  • Variable fabric input & Output option
  • Remove crease & wrinkle
  • Emergency facility to stop machine
  • Fabric Inspection panel at 60o inclined or adjustable
  • Illuminated intermediate and top panel
  • Comfortable working for operator
  • Wooden Platform for operator
  • Fabric can run in Forward as well as Reverse direction
  • Automatic stop arrangement to stop the machine at the end of fabric
  • Bow Roller has been provided to open out crease in the fabric.



Optional
